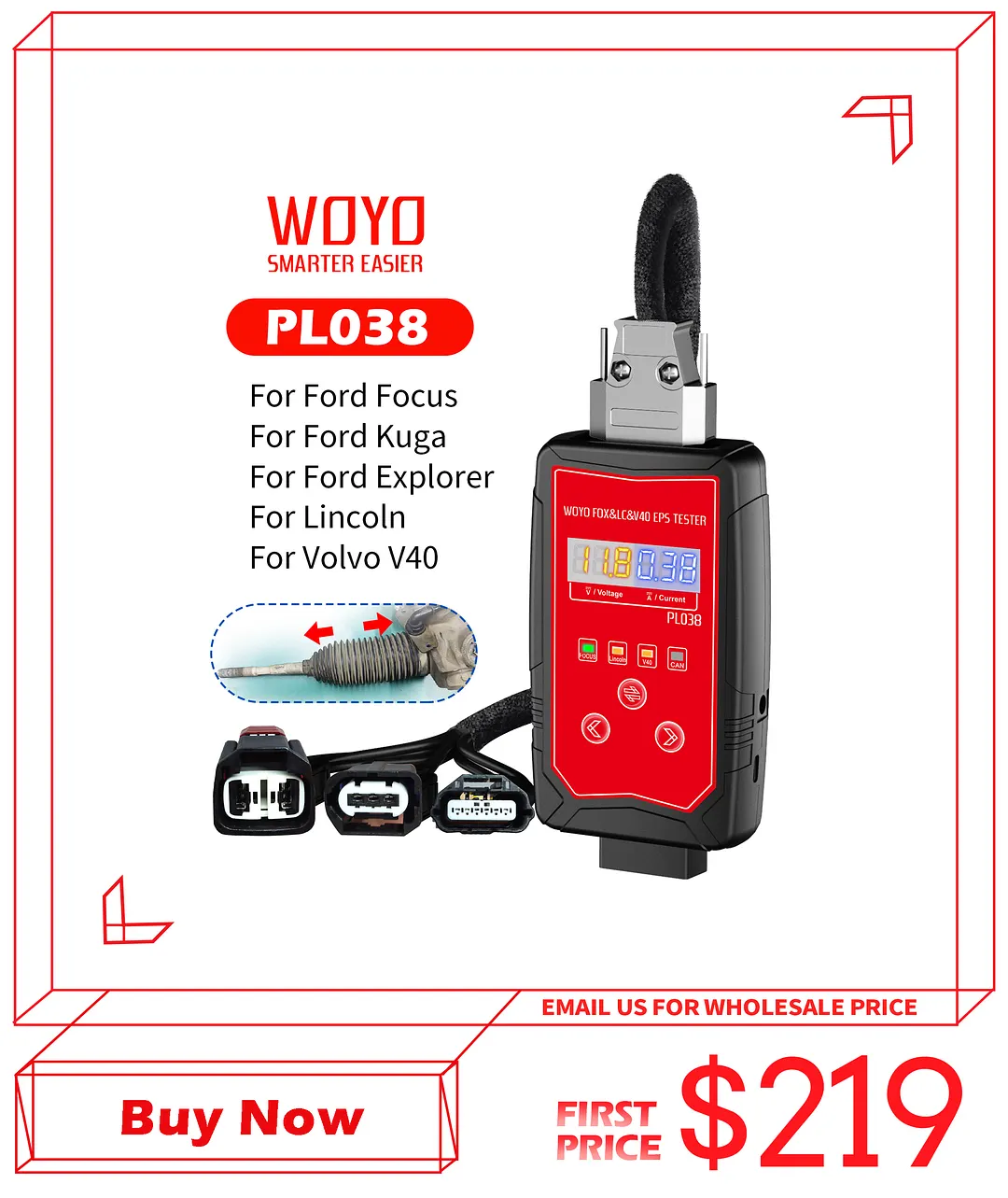

After you repair the Wheel Steering Motor, our product can be directly tested on the workbench to see if it works properly without the need to reinstall it in the car for repeated testing.
Function:
1.Simulate Torque Sensor to Activate CAN;
2.Can Flash Firmware, Update Software;
3.Also can test the Torque Sensor;
4.When you connect to the diagnostic scanner, you can read the data about Torque Sensor.
Operation:
Switch : Select the model you want to test. ("FOCUS" "Linc""V40")
"<" ">": Drive or Rotate the Wheel Steering Motor.
Power supply:12V 10A, we don't send with this cable.
Screen:Show work voltage or current of the tester.
Support to connect to other diagnostic scanner to check the real-time data for Wheel Steering Motor.
Support model:
For FORD C-MAX II 2010 -
For FORD FOCUS III 2011 - 2017
For FORD TRANSIT CONNECT Wagon/Мan 2013 -
For FORD USA EXPLORER 2011 -
For FORD USA FLEXoff-road closed 2012-
For FORD USA TAURUS 2012 -
For LINCOLN MKC 2014 -
For LINCOLN MKS 2012 -
For VOLVO V40 2011 - 2018
Note: Only suit for Iron Shell Steering Wheel Motor.
Note:
1. The flashing firmware must be done using original manufacturer software.
2. Online flashing firmware using decoders is not supported.
3. Additionally, during the steering testing process,it is advisable to avoid extending to the maximum limit to reduce the risk of losing EPS computer board data.
Package List:
Tester*1
Adapter Cable*1
12V Power Adapte*1
Package Size:19.5*16*8cm
Package Weight:0.5kg
