Application Scenario: (Application of vehicles with one-key start function)

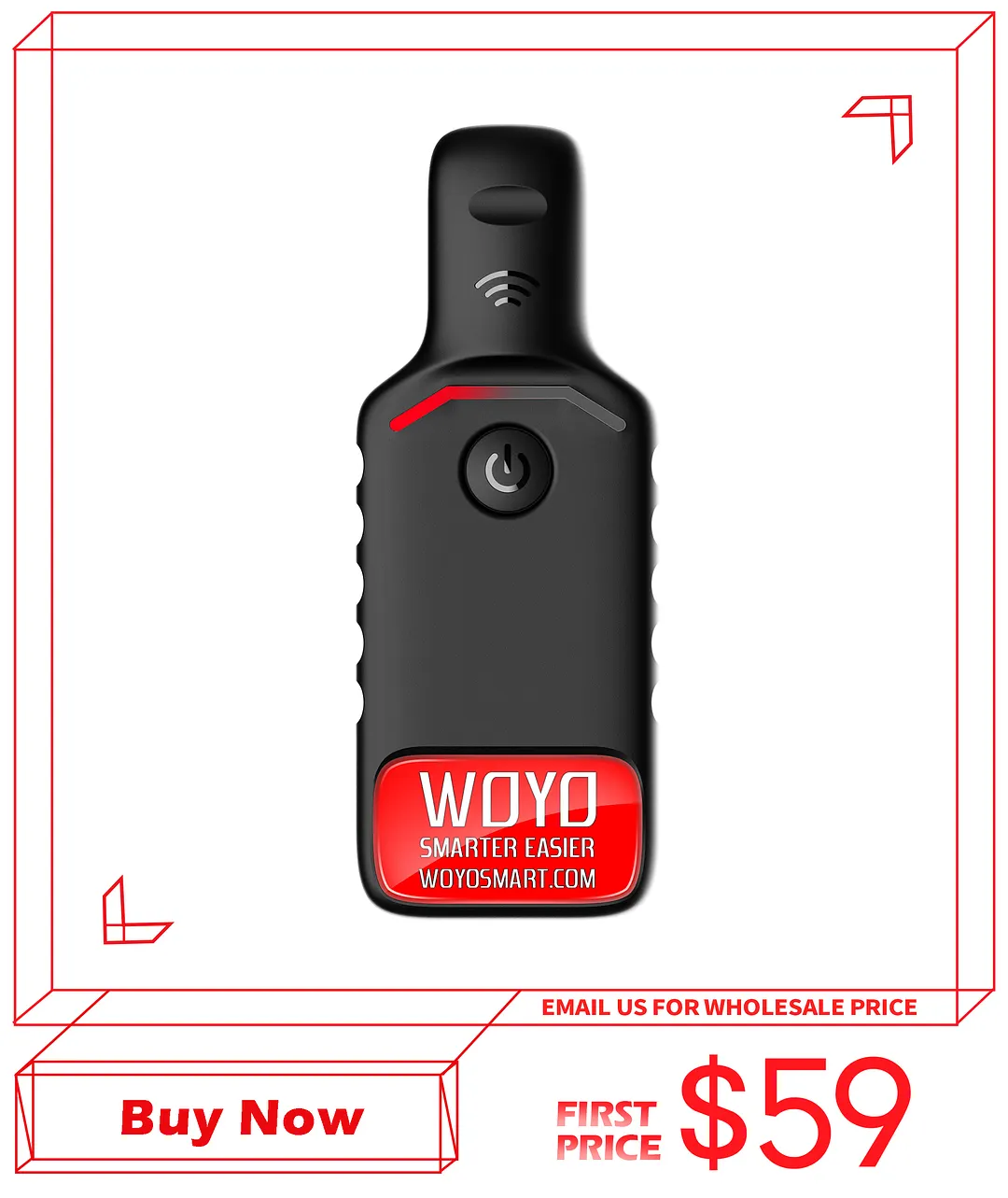

WOYO PL011 is designed to locator and diagnostic keyless automotive systems, including PKE (Passive Keyless Entry), KSS (Keyless Start System), and KIS (Keyless Ignition System).
1.If the remote key is low battery and cannot start the vehicle, use PKE LF Locator to detect the Passive Key Backup Position,and put the remote key close to the coil, it can finish one key start the vehicle;
2.If the remote key works normally when detected by the frequency tester and cannot start the vehicle, use PKE LF Locator to detect the coil position, and if there is no indicator light and horn prompt, determine whether there is a malfunction of the key recognition antenna coil;
3.It accurately tests handle sensors and LF antennas to ensure proper functionality.
Description:
1.Power supply battery 1.5V*2 AAA;
2.Standby power consumption 12mA/3V;
3.The farthest detection distance: 5CM/125KHz, with the strength of the signal, non-absolute value;
4.3 minutes no detection signal automatic sleep;
5.Strong and weak indication: detect the signal, the buzzer beeps, the stronger the signal, the more indicator lights.
Pack List:
Main*1
Package Size:12*2.7*2CM
Package Weight:0.05KG
