Description:
The Steering Angle Sensor tester is ideal for engineers to verify the functionality of automotive electronic modules post-repair without the need to reinstall them into the vehicle. By using our device, engineers can accurately test and validate repaired modules in a simulated real-vehicle environment, significantly enhancing the efficiency and success rate of repairs. This testing method not only saves time but also substantially reduces the risk of subsequent issues due to inadequate testing.

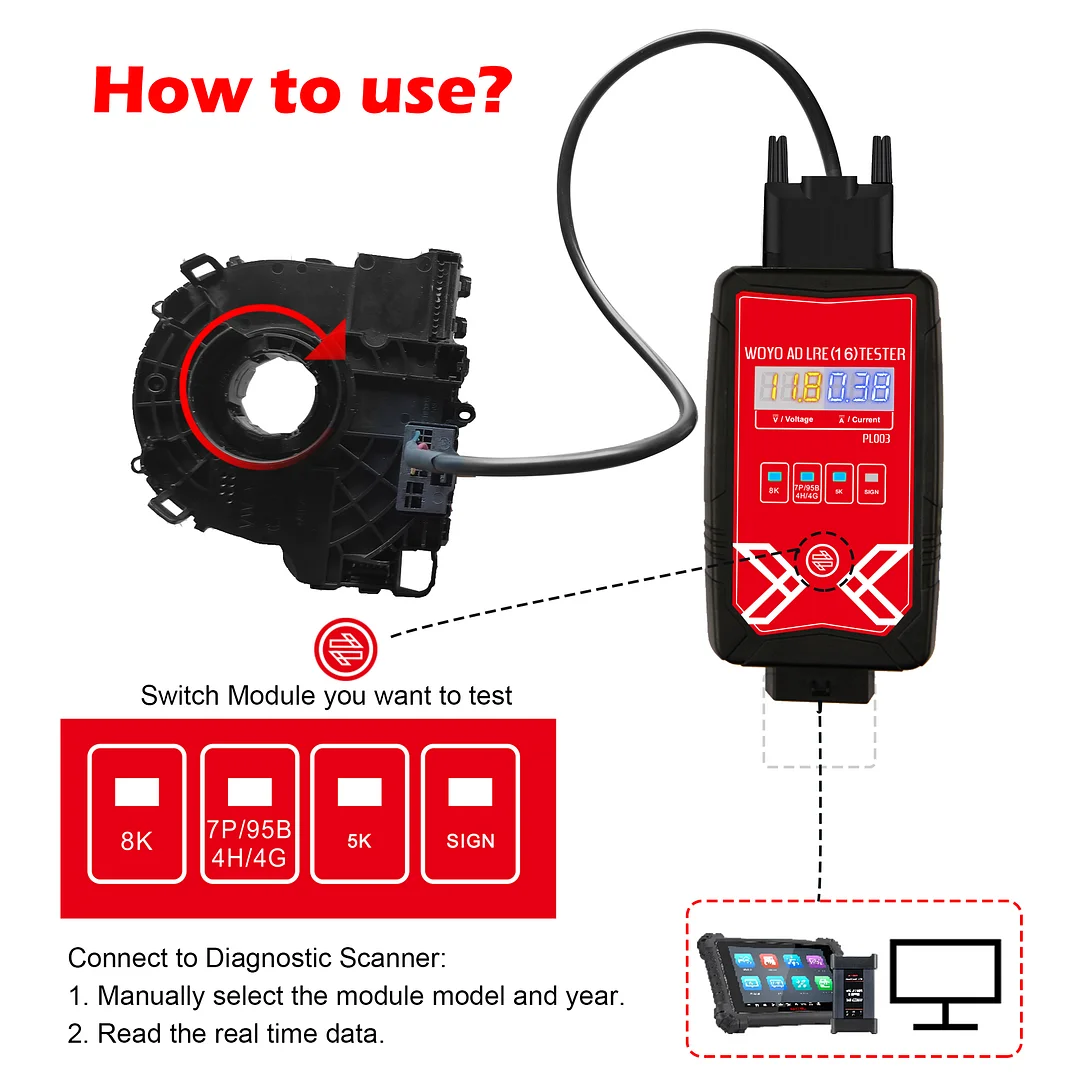

The Steering Angle Sensor tester is equipped with an OBD port, supporting connection to both original diagnostic tools and third-party diagnostic tools to monitor more data.
The Steering Angle Sensor tester is specifically designed to ensure the functional integrity of automotive electronic modules after repair, with the following core testing capabilities:
Bench Testing: Simulates the working state of modules in a controlled environment for comprehensive performance evaluation.
Lab Testing: Conducts in-depth fault analysis and functionality verification under strictly controlled lab conditions.
Component Testing: Independently tests each component to ensure it operates according to manufacturing standards.
Hardware In-the-Loop (HIL) Testing: Simulates the operating environment of the entire system to validate real-time interactions between the component and other system parts.

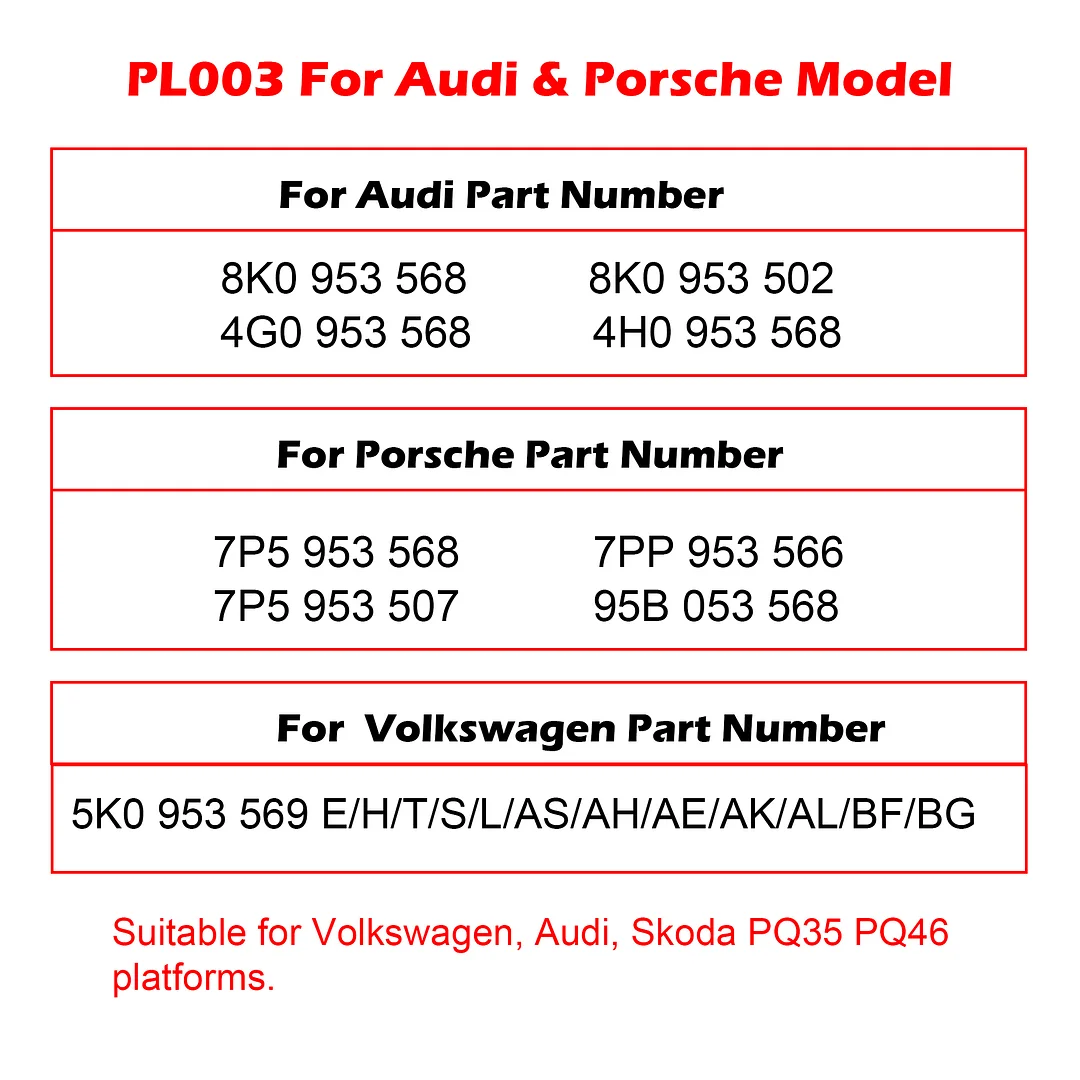

Supported Models:
For Audi:
8K0 953 568
8K0 953 502
4G0 953 568
4H0 953 568
For Porsche:
7P5 953 568
7PP 953 566
7P5 953 507
95B 053 568
For Volkswagen:
5K0 953 569 E/H/T/S/L/AS/AH/AE/AK/AL/BF/BG
(Suitable for Volkswagen, Audi, Skoda PQ35 PQ46 platforms.)
Supported Part Number：For AUDI 8K0 953 568 Coil Spring With Electronics And Steering Angle Sensor

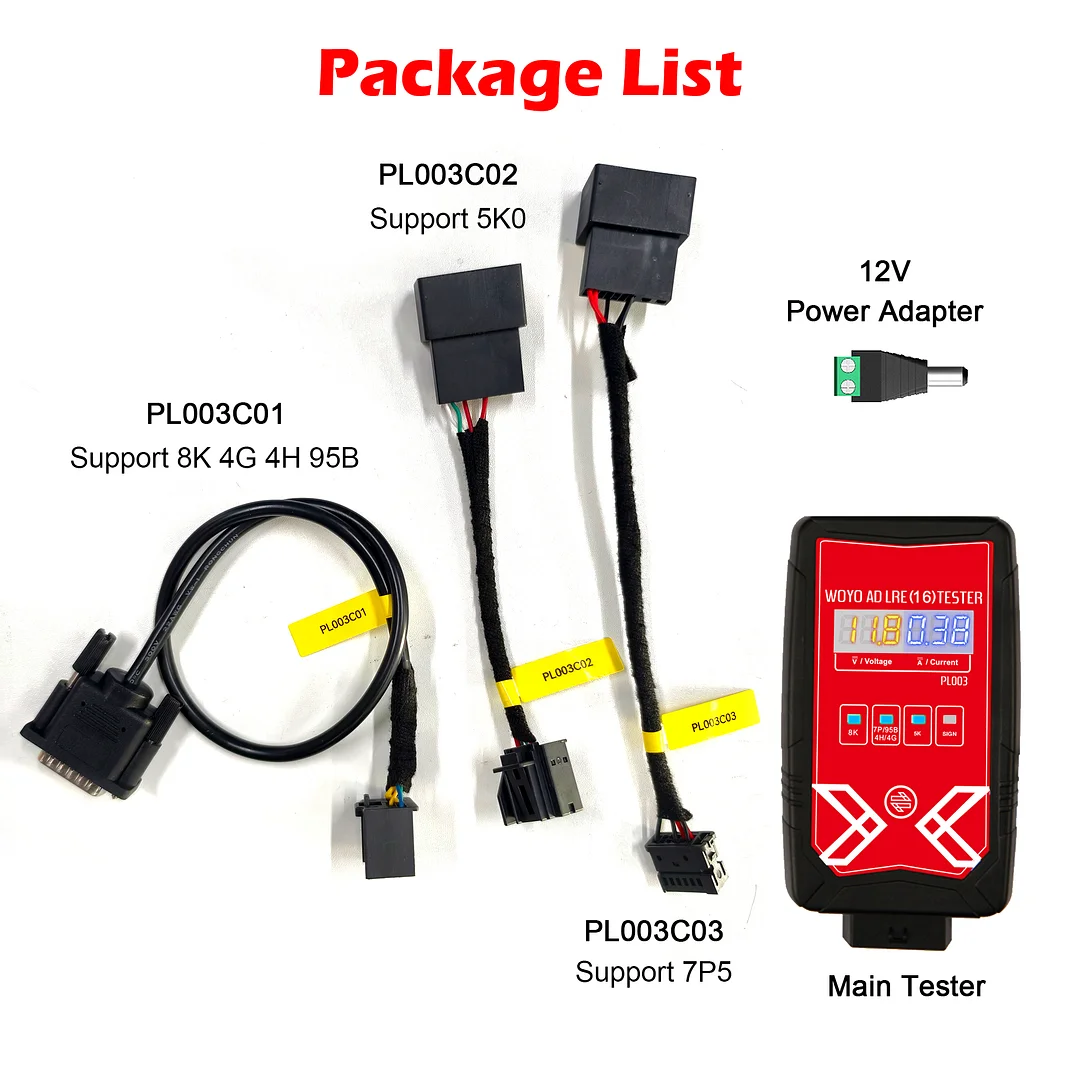

Packing List:
Main *1
Cable*1
Package Size:18.5*14.5*3.3CM
