Description:

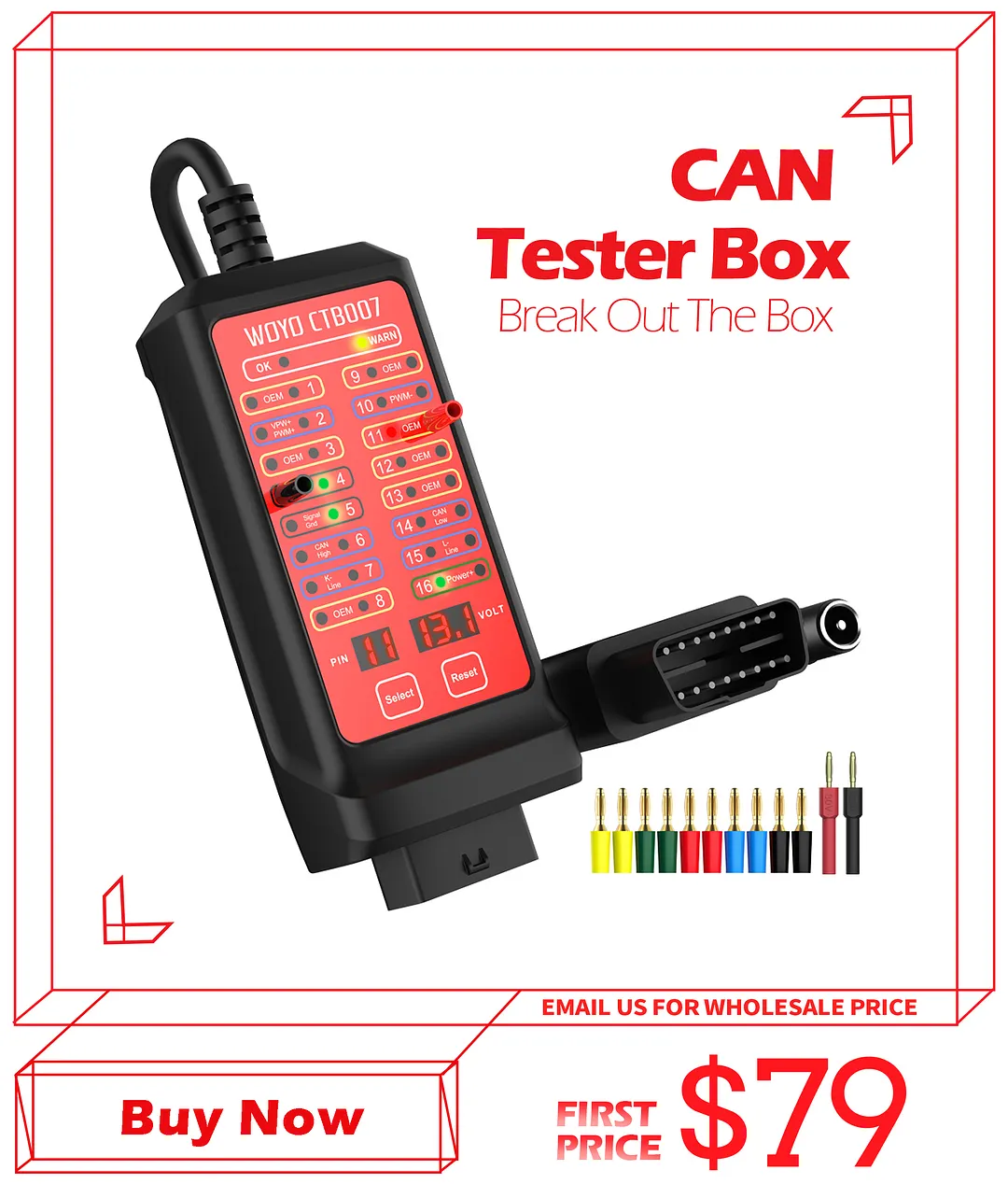

1.CAN Tester Box is a CAN Bus circuit tester compatible with 12 and 24 volt systems;
2.Testing DLC (OBD port) if any error before connecting connecting other diagnostic equipment to DLC, such as pin short circuit and polarity reverse connection ;
3.Real-time display of communication signals ( such as communication protocol signals ) on the allocated pins which can quickly locate faults and replace the voltage measurement function of digital multi-meter ;
4.Fastly connect 16 pins during vehicle maintenance diagnosis;
5.Monitoring input voltage of OBD when burning module, high and low voltage alarm; 6.Quick short obd porsche communication 3-7;
Short-circuit obd VW key all lost 1-6;
Short-circuit obd Mitsubishi remote control 1-4;
Short-circuit obd Toyota sync 4-13;
7.OBD workbench CAN boot box;
8.Replace the battery tool,12V 24V vehicle electrical system voltage retention device that supplies voltage to the vehicle during a battery change so that settings such as radio codes, seat memory and on-board electronics are retained;
Specifications:
Input Voltage:9.0-32.0VDC
Maximum Load:2.0A
Resolution:0.1V
Overload Protection:Yes, PTC Fuse (Self-Healing)
Reverse Polarity Protection:Yes,LED On Pin 4&5 Turn Red
Protocol Standard:PWM(J1850)、VPW（J1850）、ISO 9141-2、DIS/ISO 14230-4、CAN(J-2284)
Operating Temperature:0℃-50℃，Humidity<70%
Banana Socket:2mm*10;2mm to 4mm*2
OBD Cable Length:70cm or 150cm
Power Cable Connector:5.5×2.1 mm
Packing List:
Main*1
Probes*12
Package Size:19*13*4.7cm
Gross Weight:0.35kg
